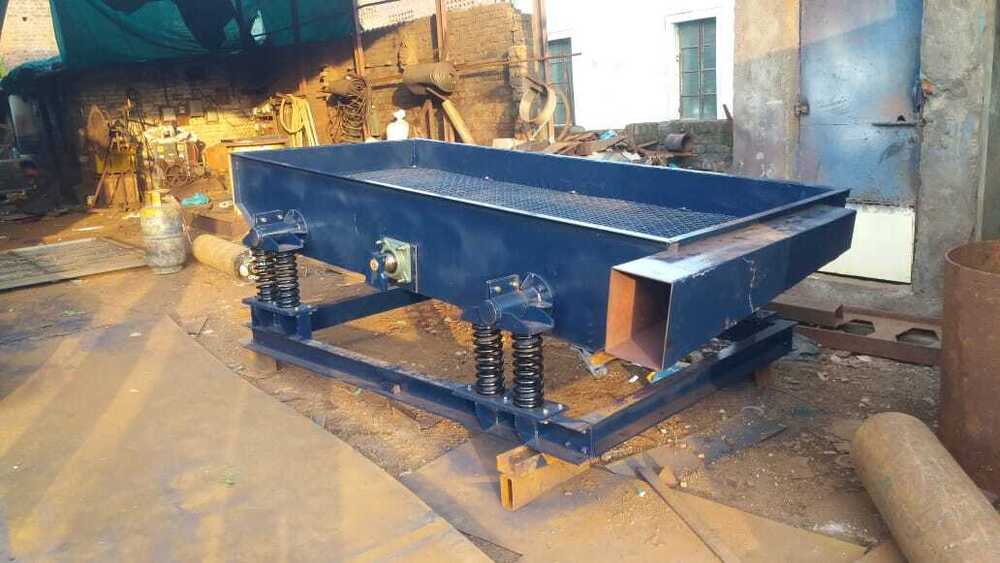

Single Deck Vibrating Screen

Name: Single Deck Vibrating Screen
Brand: STERLING ENGINEERING CO
Price: 450000 INR
Availability: InStock

Price 450000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Single Deck Vibrating Screen Specification

Type
Single Deck Vibrating Screen

Material
Mild Steel

Processing Type
Automatic

Condition
New

Shape
Rectangular

Capacity
2-6 TPH

Diameter
900-1200 mm

Layer
Single

Dimension (L*W*H)
1200 x 800 x 1200 mm

Power Mode
Electric

Voltage
220-240 V

Power Consumption
1-2 kW

Media
Wire Mesh / Perforated Sheet

Noise Level
Low

Frequency
50 Hz

Application
Screening, Grading, Separating Materials

Coating Type
Paint Coated

Surface Finish
Smooth

Feeding Size
Up to 50 mm

Installation
Easy to Install

Color
Industrial Grey/Custom

Screen Opening Size
1 mm to 20 mm

Discharge Method
Bottom Discharge

Portability
Fixed

Operating Temperature
-10°C to +60°C

Mesh Size
Customizable as per requirement

Motor Type
Vibratory Motor

Frame Material
MS/SS Available

Single Deck Vibrating Screen Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Units Per Month

Delivery Time
1 Months

Main Export Market(s)
Asia

About Single Deck Vibrating Screen

We have achieved a distinct position in the market by providing Single Deck Vibrating Screen. This vibrating screen is utilized as oversize product screeners, polishing screeners, or scalping screens. Single Deck Vibrating Screen is available in various specifications to meet the varied needs of customers. This screen is basically demanded to separate and transport granulated materials in various processes.

Superior Material Handling

This vibrating screen offers optimal performance for screening, grading, and separating materials. It handles diverse feed sizes up to 50 mm and processes a wide range of materials, making it suitable for industries like mining, food processing, and chemical production. The customizable mesh and screen opening sizes ensure you get precise results according to your unique material specifications.

Built for Reliability and Versatility

Fabricated from sturdy mild steel or stainless steel, the single deck screen boasts impressive durability and corrosion resistance. The paint-coated finish extends its operational life even under harsh conditions. Its fully automatic operation and user-friendly design ensure easy installation and minimal maintenance, resulting in consistent screening capabilities for your processing needs.

FAQ's of Single Deck Vibrating Screen:

Q: How does the Single Deck Vibrating Screen operate for screening and grading materials?

A: The Single Deck Vibrating Screen uses a vibratory motor to create vibrations, causing material to move across the surface. Particles smaller than the selected mesh opening pass through, while larger particles travel to the discharge end. This enables precise screening, grading, and separation of materials as required by your application.

Q: What customization options are available for the mesh size and screen opening?

A: Mesh size and screen opening can be customized between 1 mm and 20 mm based on your specific material and process requirements. You can also choose between wire mesh or perforated sheet media for optimal performance in various applications.

Q: When is the ideal scenario to use a Single Deck Vibrating Screen?

A: This vibrating screen is ideal when you need to process materials for screening, grading, or separating within the 2-6 TPH capacity range. Its single deck, customizable mesh, and robust construction make it suitable for mid-scale operations in industries like mining, chemical, aggregate, or food processing.

Q: Where can this vibrating screen be installed and operated?

A: It is designed for fixed installations in industrial settings across India, including manufacturing plants, warehouses, and processing units. The screen's easy installation and compact dimensions ensure seamless integration into your existing workflow.

Q: What are the main benefits of using this vibrating screen in a production line?

A: The key benefits include efficient processing capacity (2-6 TPH), customizable mesh and opening sizes, low noise operation, high durability, and ease of installation. Its robust construction and reliable vibratory motor minimize maintenance while delivering consistent and precise results.

Q: Can the screen be used for both mild and aggressive materials?

A: Yes, the frame materials (mild steel or stainless steel) and customizable media ensure compatibility with a wide range of materials, including mild, abrasive, or chemically aggressive substances.
